Availability: | |
---|---|
Quantity: | |
·Suitable for producing different kinds of road pyramid, logistic insulation barrels.
·Optional bottom sealing, product eject, core-pulling movement elements.
·Adopt high output extrusion system, accumulating die head.
·Optional Hydraulic Servo control system
Model | Unit | BM30 | BM50 | BM100 |
Max product volume | L | 30 | 50 | 100 |
Dry cycle | Pc/h | 600 | 450 | 360 |
Die head structure | Accumulating type | |||
Main screw diameter | mm | 80 | 90 | 100 |
Max plasticizing capacity(PE) | Kg/h | 120 | 180 | 190 |
Driving motor | Kw | 37 | 45 | 55 |
Accumulating volume | L | 5.2 | 6.2 | 12.8 |
Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
Clamping force | KN | 280 | 400 | 600 |
Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
Platen size H*W | mm | 740*740 | 880*880 | 1020*1000 |
Max. mould size | mm | 550*650 | 700*850 | 800*1200 |
Heating power of die head | Kw | 20 | 28 | 30 |
Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
Machine weight | T | 12 | 13.5 | 16 |
Total power | Kw | 95 | 110 | 135 |

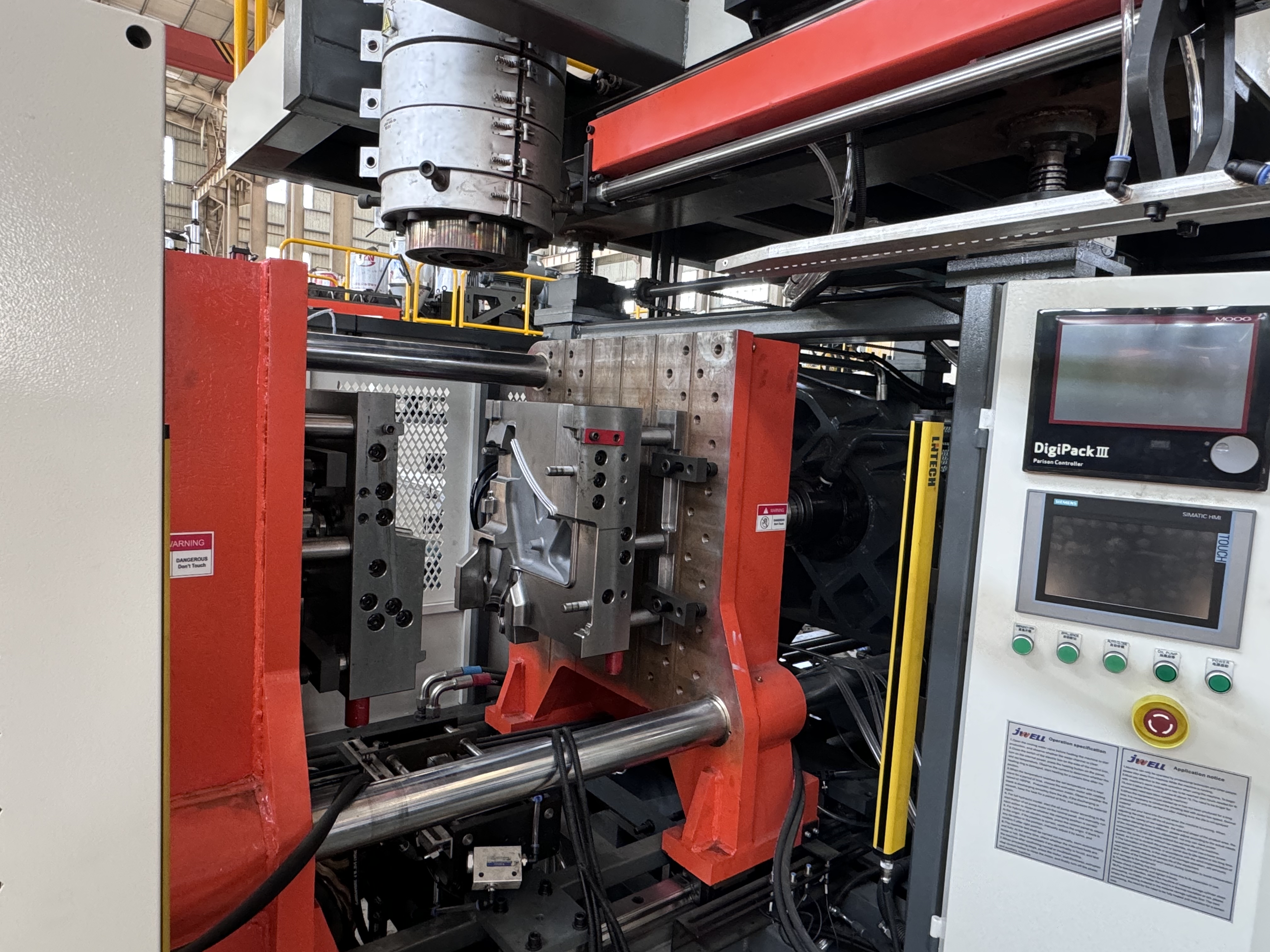

JWZ-BMJT Transportation Series 30L Blow Molding Machine is suitable for road safety facilities barricades, plastic conical road cones, blow moulding, can produce finished products in a relatively short period of time, can be customised according to customer demand templates, to enhance the application of the product performance
·Suitable for producing different kinds of road pyramid, logistic insulation barrels.
·Optional bottom sealing, product eject, core-pulling movement elements.
·Adopt high output extrusion system, accumulating die head.
·Optional Hydraulic Servo control system
Model | Unit | BM30 | BM50 | BM100 |
Max product volume | L | 30 | 50 | 100 |
Dry cycle | Pc/h | 600 | 450 | 360 |
Die head structure | Accumulating type | |||
Main screw diameter | mm | 80 | 90 | 100 |
Max plasticizing capacity(PE) | Kg/h | 120 | 180 | 190 |
Driving motor | Kw | 37 | 45 | 55 |
Accumulating volume | L | 5.2 | 6.2 | 12.8 |
Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
Clamping force | KN | 280 | 400 | 600 |
Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
Platen size H*W | mm | 740*740 | 880*880 | 1020*1000 |
Max. mould size | mm | 550*650 | 700*850 | 800*1200 |
Heating power of die head | Kw | 20 | 28 | 30 |
Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
Machine weight | T | 12 | 13.5 | 16 |
Total power | Kw | 95 | 110 | 135 |
JWZ-BMJT Transportation Series 30L Blow Molding Machine is suitable for road safety facilities barricades, plastic conical road cones, blow moulding, can produce finished products in a relatively short period of time, can be customised according to customer demand templates, to enhance the application of the product performance
