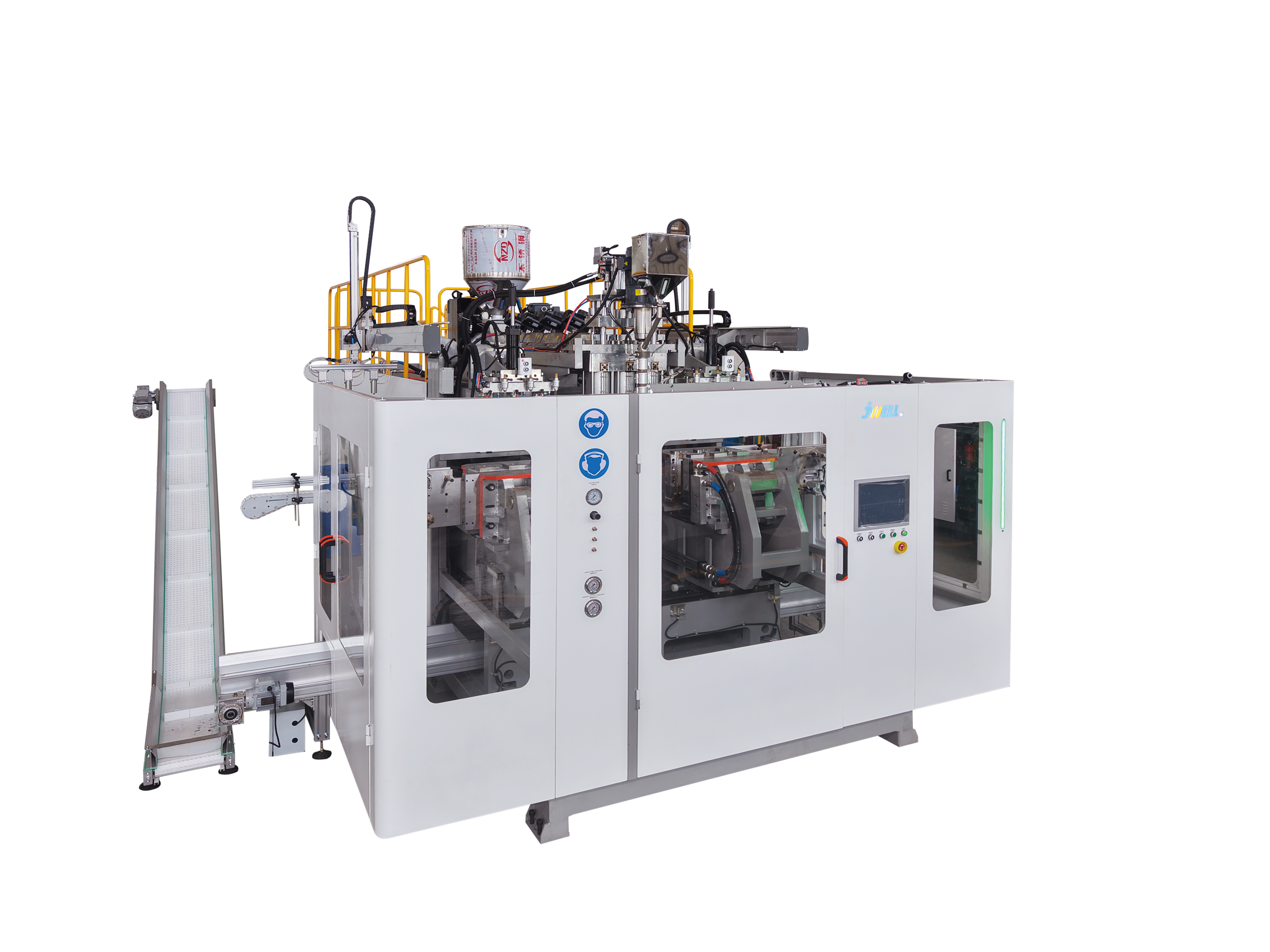

JWZ-BMQC Automotive Series 5L Double Station Blow Molding Machine, designed for large-scale production of 1-5L gear oil bottles and lubrication oil bottles. This versatile machine is equipped with advanced features to ensure efficient and high-quality production. With a post-cooling device integrated into its design, bottle forming time is shortened, enhancing efficiency and guaranteeing superior product quality. Additionally, the machine's dieheads are designed using modern three-dimensional software, allowing for precise customization to meet various customer demands. Furthermore, optional downstream equipment can be added for automated deflashing, conveying, and packaging processes, providing a comprehensive solution for your production needs.
| Quantity: | |
|---|---|
·Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
·Optional multi-layer co-extrusion.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Long opening stroke and linear movements
Single and double station
Hydraulic, hybrid, or all electric platforms available
Less energy consumption and more clamping force.
Trimming and leak test online
Servo robot take-out
Optional view stripe and co-extrusion
AC inverter extruder drive controllers
Single and multi-parison dieheads
Automotive Industry: Ideal for automotive industry applications requiring the production of gear oil and lubrication oil bottles.
Manufacturing Facilities: Suitable for large-scale manufacturing facilities seeking efficient and high-quality production solutions.
Customization Workshops: Perfect for customization workshops catering to specific bottle size and design requirements.
1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank:our production line is used to produce containers of 1-5L for automotive supplies such as gerar oil bottle,lubrication oil bottle and cooling water tank.
Model | Unit | BM05D | BM12D | BM20D |
Max product volume | L | 5 | 12 | 20 |
Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
Die head structure | Continuous type | |||
Main screw diameter | mm | 75 | 90 | 90 |
Max plasticizing capacity(PE) | Kg/h | 90 | 160 | 160 |
Driving motor | Kw | 30 | 45 | 45 |
Oil pump motor power(Servo) | Kw | 15 | 18.5 | 18.5 |
Clamping force | KN | 70 | 120 | 160 |
Space between platen | mm | 150-510 | 240-640 | 280-680 |
Platen size W*H | mm | 420*390 | 520*490 | 500*520 |
Max mould size | mm | 420*400 | 540*500 | 560*520 |
Platen moving stroke | mm | 450/520 | 600/650 | 650 |
Heating power of die head | Kw | 7.5 | 10 | 12.5 |
Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
Machine weight | T | 8.5 | 12 | 14 |
Total power | Kw | 60 | 90 | 93 |
JWZ-BMQC automotive series 5L Double station blow-molding machine is suitable for large-scale production of 1-5L different size of gear oil bottle, lubrication oil bottle.We equip with post-cooling device in order to improve the efficiency and shorten the time for bottle forming, so the quality has been guaranteed. In order to meet different demands of the customer, all the dieheads are designed by modern theree dimensional designing softwares ,we also can equip with other downstream equipment, so that auto-deflashing ,conveying and packaging can be achieved.
