| Quantity: | |
|---|---|

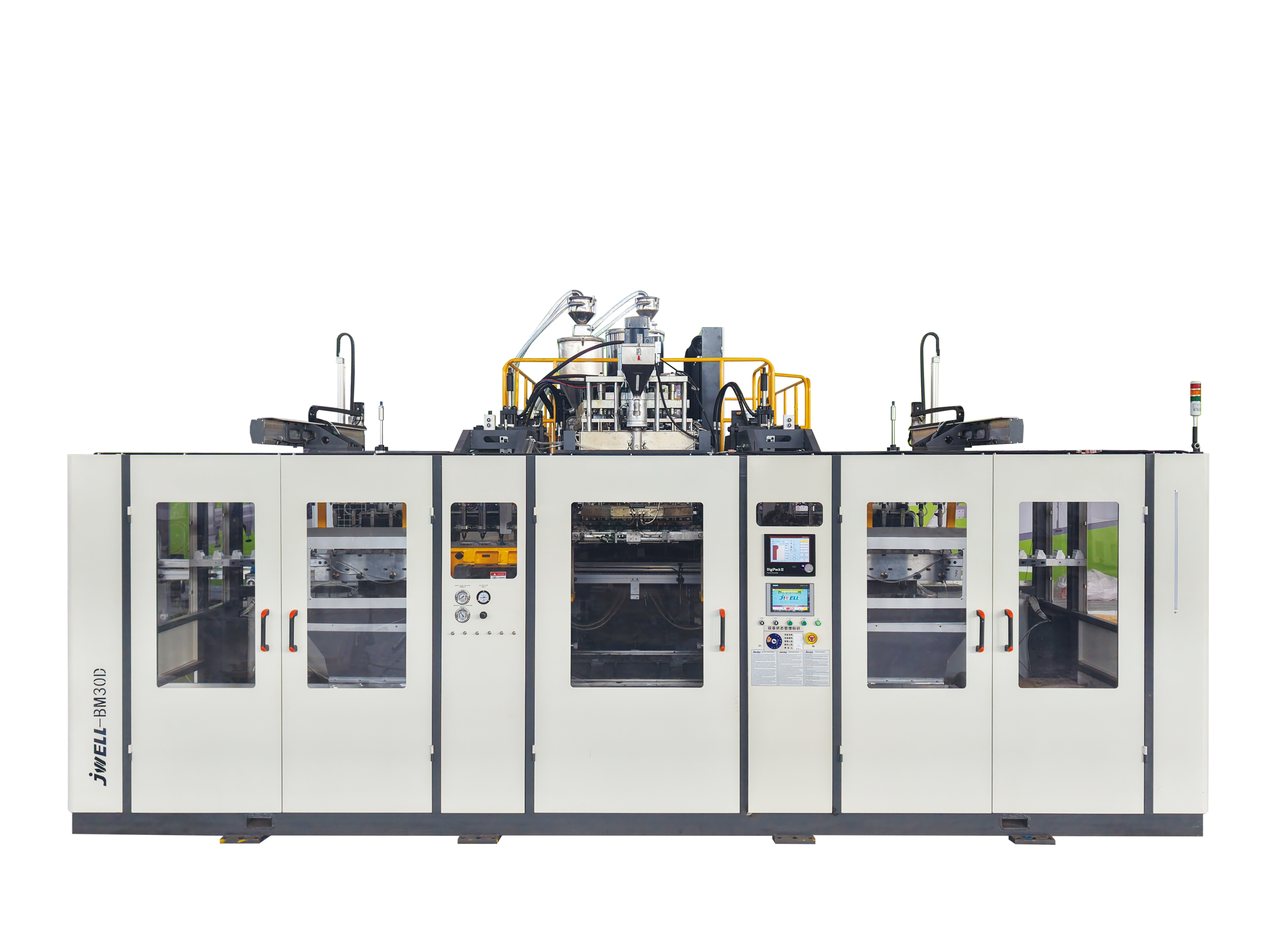

·Suitable for producing 15-30L different size Chemical packaging jerrycan.

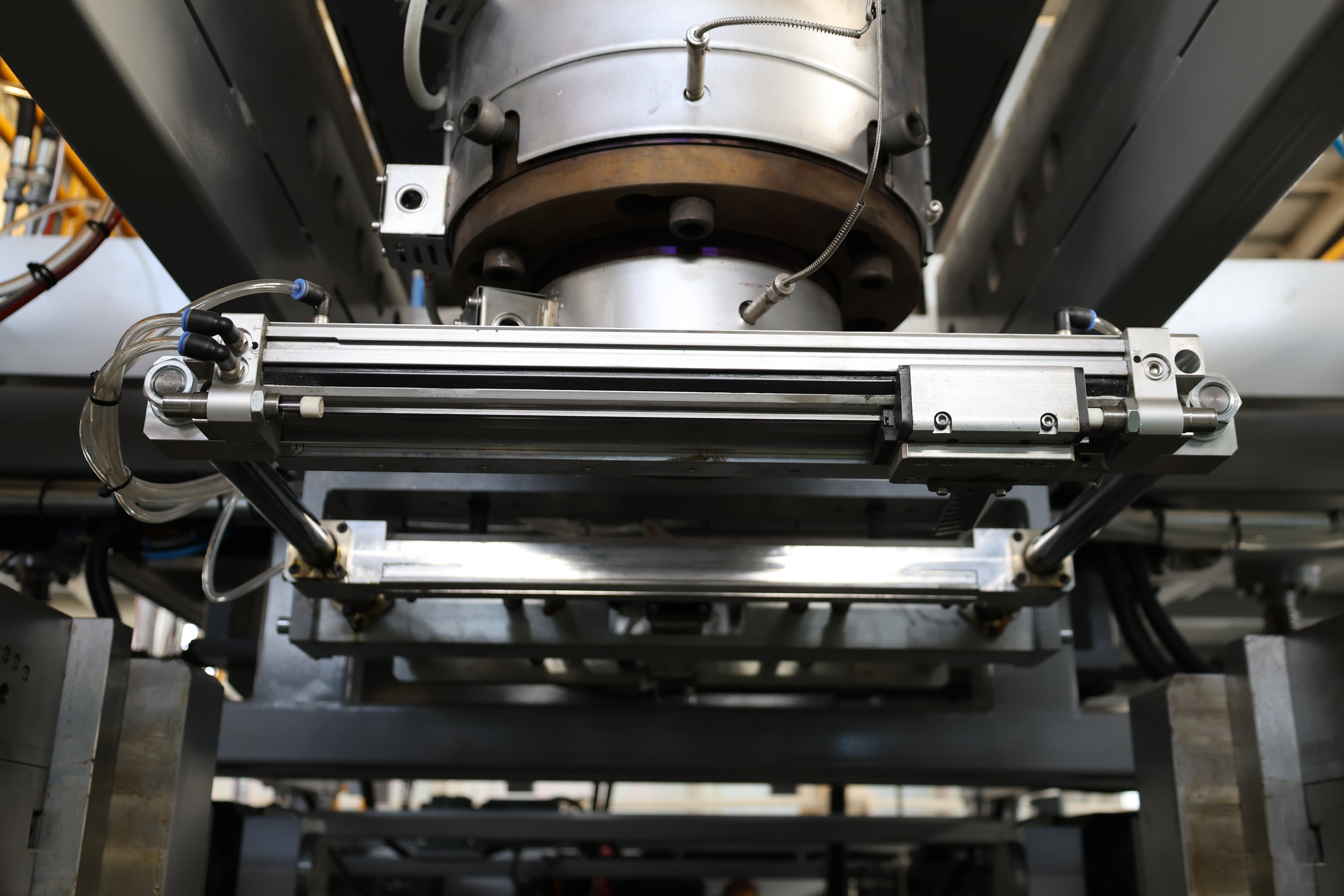

·Adopt continuous type die head,up-blowing structure,convenient for product auto-deflashing on-line, scrap conveying on line,finished product leak testing on line, conveying,packing, etc.,reducing the working cost and increasing the production ratio.

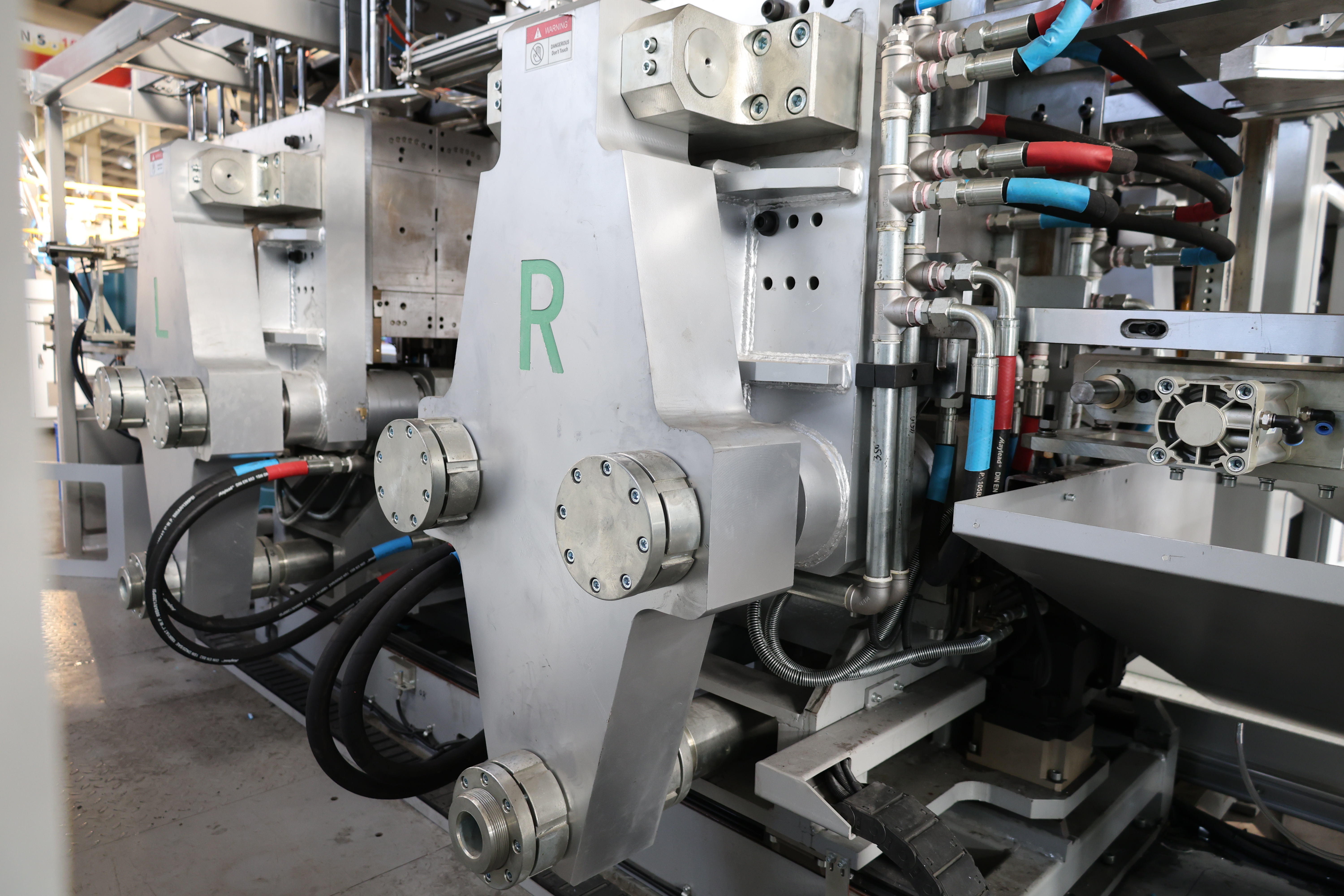

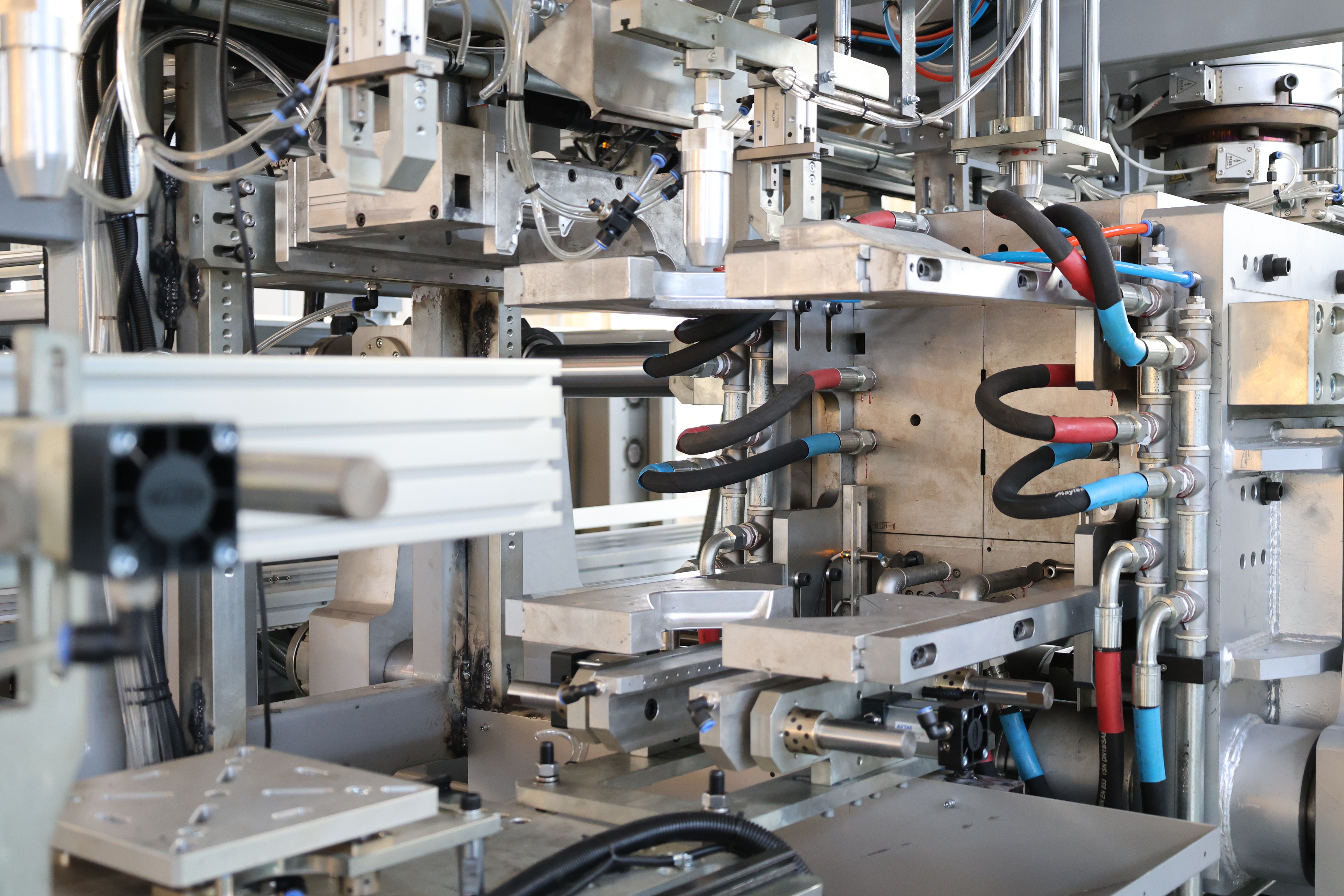

·Adopt toggle type platen structure, have the advantages of uniform-clamping, big clamp force, assembling large mould, easier dismounting& assembling the mould.
·Optional multi-layer co-extrusion system.
·Optional view strip line system.
·Optional hydraulic servo control system.
15-30L different size Chemical packaging jerrycan:Our production line is suitable for the production of 15-30L different size Chemical packaging jerrycan,which manufactured through the process of forming,processing,cooling,shaping,trimming.
Model | Unit | BM30DN-C |
Max product volume | L | 30 |
Dry cycle | Pc/h | 450*2 |
Die head structure | Continuous type | |
Main screw diameter | mm | 100 |
Max plasticizing capacity(PE) | Kg/h | 190 |
Driving motor | Kw | 55 |
Oil pump motor power (Servo) | Kw | 22 |
Clamping force | KN | 300 |
Space between platen | mm | 340-860 |
Platen size W*H | mm | 580*600 |
Max.mould size | mm | 500*600 |
Platen moving stroke | mm | 800 |
Heating power of die head | Kw | 20 |
Overall dimension L*W*H | m | 5.6*4.8*4.5 |
Machine weight | T | 18 |
Total power | Kw | 125 |
